Walther Data

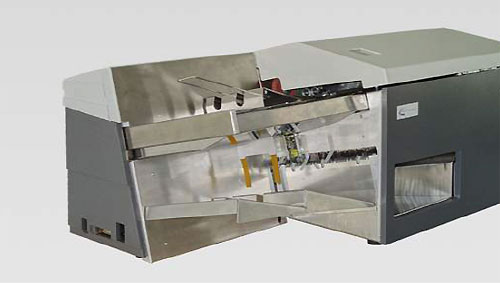

Eco Series High-End-Ultra-Fast Document Scanners

Conception



Each day a lot of organizations and companies are faced with a flood of paper documents, letters, bills, incoming mail, payment forms, orders, tickets, vouchers …
To process this huge variety of papers with an optimal throughput, easy operating and perfect image quality the ECO series has been developed.
Robustness and reliability have been realized again in the ECO series without any compromise in WALTHER’s proven technology and transport experience.
This new generation of document scanners is challenging the big brothers and is beating them with an outstanding performance and additional useful features.

Features

More than a standard document scanner:

  • A big feeder with continuous load for document batches in mixed size, weight and paper quality.
  • A metal paper track with free access for jam handling and maintenance purpose.
  • Two versions of high quality cameras, depending on the required application or performance.
  • MICR read head for code line reading of checks.
  • Imprinter with standard ink cartridge for one line endorsements, free programmable.
  • One or two output pockets for good/bad sorting, exception items, rejects or other sorting criteria..
  • Special software tools for OCR A/B, barcode decoding or document verification.

Applications

  • Document processing
  • ICR, OCR and barcode applications
  • Check and payment form Processing
  • Processing of health care forms and documents
  • Scanning of all kind of mixed size paper batches

Characteristics

  • Compact table-top design
  • High performance production scanner
  • Robust, reliable and versatile
  • Free accessible paper transport track and easy jam handling
  • System integrator friendly API and device driver

Technical Data

Feeder

Capacity: Up to 1000 documents in a mixed size batch.
Special designed soft pulling wheel for document separation.
Double feed detection by 3 ultrasonic sensors
Continuous load without stopping the transport.

Transport

Speed: 0.5m/s to 1m/s.
Document size: From 75 x 108 mm ( A 7 ) to 310 x 420 mm ( A 3 )
Paper weight: 70 150 g/m²
Metal transport track walls for heavy duty purpose
Touch screen for operating commands

Pockets

One output pocket for up to 1000 documents.
Second pocket for rejects and exception items

Cameras

Cameras on CIS base LED RGB illumination with special light array Front and rear camera
24 Bit color images and 256 gray scale images

ECO 3 : 100 – 600 dpi resolution Scanning width: 305 mm Throughput : up to 300 dpm A 6, 150 ppm A 4, 85 ppm A 3
ECO 4 : 100 – 400 dpi resolution Scanning width: 216 mm Throughput for gray scale images: 300 dpm A 6 and 150 ppm A 4 .For color images half performance

MICR reader

E 13 B and CMC 7 code lines
Imprinter on ink jet base With high capacity ink cartridge Pre-endorser for front side or post-endorser for rear side

Software Interface

API device driver
TWAIN driver

Hardware Interface

ECO 3: 1 x USB 2.0 high speed + 2 x LAN/SCSI 2
ECO 4: 3 x USB 2.0 high speed

Dimensions

Unit size LxDxH: 1130x580x480 mm
Weight: 90 kg

Power supply

Integrated power supply 120 – 240 Volt, 50/60 Hz
Power consumption 80-200 W

Environment conditions

Temperature: + 10°C - + 35°C
Relative humidity: max. 90 %
